Raycor fuel filter

how do you know when the filter dosent filter anymore
does the bowl show debris
__________________

tjandoverguy is offline   Reply With Quote
Old 25-05-2020, 06:07   #2
Senior Cruiser

skipmac's Avatar

Cruisers Forum Supporter

Join Date: Oct 2007
Location: 29 49.16 N 82 25.82 W
Boat: Pearson 422
Posts: 14,703
Re: Raycor fuel filter

You might or might not see actual debris (and/or water) in the bottom of the bowl, depending on what is clogging the filter.

The best way to determine the state of the filter is with a vacuum gauge. There should be a fitting on top of the Racor where the gauge will screw in.
__________________

__________________
The water is always bluer on the other side of the ocean.
Sometimes it's necessary to state the obvious for the benefit of the oblivious.
Rust is the poor man's Loctite.
skipmac is offline   Reply With Quote
Old 25-05-2020, 06:19   #3
Registered User

Join Date: Feb 2017
Location: st croix
Boat: Hunter 410 1998
Posts: 160
Re: Raycor fuel filter

ok i get a vacuum gage what should read
tjandoverguy is offline   Reply With Quote
Old 25-05-2020, 07:19   #4
Senior Cruiser

skipmac's Avatar

Cruisers Forum Supporter

Join Date: Oct 2007
Location: 29 49.16 N 82 25.82 W
Boat: Pearson 422
Posts: 14,703
Re: Raycor fuel filter

Sorry I forget the exact numbers.

If you get the Racor gauge then the low to middle of the dial is normal. If the needle goes high on the scale that means the vacuum is higher which means the engine is having to suck harder to get fuel through the filter meaning the filter is clogging.

I just glance occasionally to see if the needle has moved and if it is still in the middle or lower. If it move to the high side of the scale then time to swap filters. Increase in vacuum is as important as the actual number.
__________________
The water is always bluer on the other side of the ocean.
Sometimes it's necessary to state the obvious for the benefit of the oblivious.
Rust is the poor man's Loctite.
skipmac is offline   Reply With Quote
Old 25-05-2020, 07:21   #5
Senior Cruiser

skipmac's Avatar

Cruisers Forum Supporter

Join Date: Oct 2007
Location: 29 49.16 N 82 25.82 W
Boat: Pearson 422
Posts: 14,703
Re: Raycor fuel filter

https://www.parker.com/static_conten...um%20Gage).pdf
__________________
The water is always bluer on the other side of the ocean.
Sometimes it's necessary to state the obvious for the benefit of the oblivious.
Rust is the poor man's Loctite.
skipmac is offline   Reply With Quote
Old 25-05-2020, 07:50   #6
Registered User

Group9's Avatar

Join Date: Sep 2010
Posts: 2,417
Images: 10
Re: Raycor fuel filter

Quote:
Originally Posted by tjandoverguy View Post
ok i get a vacuum gage what should read

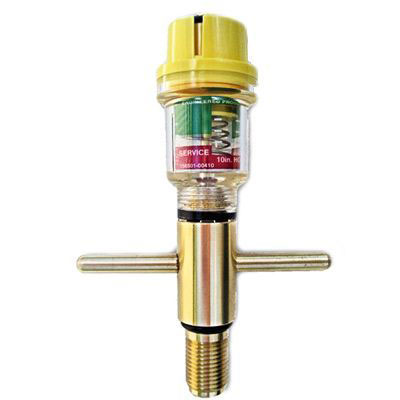

We have a vacuum gauge that screws onto the top of our Racors that actually tells you when to change the filters. I have found it to be pretty accurate (in that it indicated change was needed one day, and I thought I could make a short trip anyway, and about two hours later, one engine surged and died, and then ten minutes later, the other one, did, LOL).

__________________
Founding member of the controversial Calypso rock band, Guns & Anchors!
Group9 is offline   Reply With Quote
Old 25-05-2020, 08:12   #7
Moderator

a64pilot's Avatar

Cruisers Forum Supporter

Join Date: Oct 2013
Location: Jacksonville/ out cruising
Boat: Island Packet 38
Posts: 30,569
Re: Raycor fuel filter

Interesting, that looks like an air filter restriction gauge, most vacuum gauges on Racor’s are round dial gauges.
What they will indicate will depend on the boat, even with a perfectly clean filter mine reads kind of high as my fuel tank is lower than average and it will read higher on an almost empty tank than it will a full one. The reason is of course the lower fuel level means a higher vacuum is required to suck the fuel up to the filter.
a64pilot is offline   Reply With Quote
Old 25-05-2020, 08:20   #8
Moderator

a64pilot's Avatar

Cruisers Forum Supporter

Join Date: Oct 2013
Location: Jacksonville/ out cruising
Boat: Island Packet 38
Posts: 30,569
Re: Raycor fuel filter

Quote:
Originally Posted by tjandoverguy View Post
how do you know when the filter dosent filter anymore
does the bowl show debris
The answer is that the filter will always filter, but it will eventually clog to the point that the engine won’t run, then you put in a new filter.
The Vacuum gauge if it’s a good one has a “tattletale” which is another pointer that stays at the highest vacuum achieved, if you run a filter until fuel starvation starts to happen, then you know how much your boat and engine will pull vacuum wise then you decide just how much restriction you will accept, and change the filter before you get there. Vacuum will be different based on engine load, so at idle you will have a lower vacuum than at high power, that is why you need the tattletale, cause you don’t want to have to go below to look at the thing when the engine is running hard.
I have two filters so I can run longer because if I get into fuel starvation I flip the lever to the other filter.
The red needle is the tattletale.
You can also just change filters at some interval like we do oil filters, say once a year, that’s easiest and you don’t have to buy a vacuum gauge. However carry spares cause filters are known to clog when you least expect it, and without a spare your options are limited.
Attached Thumbnails
Click image for larger version

Name:	421F4BCF-2D5D-42A8-9430-22C901C180EE.jpg
Views:	31
Size:	408.2 KB
ID:	215745
a64pilot is offline   Reply With Quote
Old 25-05-2020, 08:27   #9
Registered User

Join Date: Feb 2017
Location: st croix
Boat: Hunter 410 1998
Posts: 160
Re: Raycor fuel filter

thank you for all the replies
tjandoverguy is offline   Reply With Quote
Old 25-05-2020, 13:33   #10
Senior Cruiser

Cruisers Forum Supporter

Join Date: May 2013
Location: Oregon to Alaska
Boat: Wheeler Shipyard 83' ex USCG
Posts: 2,791
Re: Raycor fuel filter

Any vacuum gauge will do. The actual vacuum numbers will vary depending on the Racor model and the volume of fuel passing thru. Filters usually last much longer than most people think.
I have twin Detroits and Racor 900s. My engines pump about 70 gallons/hr. I use a 2 micron filter element and my vacuum reads zero when the element is new and 7" when I change it at about 500 hours.
Lepke is offline   Reply With Quote
Old 25-05-2020, 14:22   #11
Registered User

Simi 60's Avatar

Join Date: Jun 2016
Location: Australia
Boat: Milkraft 60 ex trawler
Posts: 2,663
Re: Raycor fuel filter

This type which is on our 1000 series apparently reads + or - 20 , depending on which side, when clogged

Ours always read 0 but the gauge does work as I have slowly shut down fuel as a test


__________________
