Old 28-02-2012, 23:15   #1
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
I'll Show You Mine, If You Show Me Yours

Engine.

What were you thinking?

__________________

__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 28-02-2012, 23:18   #2
Registered User

Join Date: Mar 2010
Location: Seattle
Boat: Krogen 58' Xiao Xiu
Posts: 276
Send a message via MSN to JayCall
Re: I'll show you mine, if you show me yours

I am glad I don't have to change the oil in that thing!
__________________

__________________
JayCall is offline   Reply With Quote
Old 28-02-2012, 23:25   #3
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
Re: I'll show you mine, if you show me yours

I can't remember how much oil was needed but other specs, the cylinder bore is just under 38" and the stroke is just over 98".
Each cylinder displaces 111,143 cubic inches (1820 liters) and produces 7780 horsepower.
Total displacement comes out to 1,556,002 cubic inches (25,480 liters) for the fourteen cylinder version..
Some more facts on the 14 cylinder version:
Total engine weight: 2300 tons (The crankshaft alone weighs 300 tons.)
Length: 89 feet
Height: 44 feet
Maximum power: 108,920 hp at 102 rpm
Maximum torque: 5,608,312 lb/ft at 102rpm
Fuel consumption at maximum power is 0.278 lbs per hp per hour (Brake Specific Fuel Consumption). Fuel consumption at maximum economy is 0.260 lbs/hp/hour. At maximum economy the engine exceeds 50% thermal efficiency. That is, more than 50% of the energy in the fuel is converted to motion.
For comparison, most automotive and small aircraft engines have BSFC figures in the 0.40-0.60 lbs/hp/hr range and 25-30% thermal efficiency range.
Even at its most efficient power setting, the big 14 consumes 1,660 gallons of heavy fuel oil per hour.

__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 28-02-2012, 23:29   #4
Registered User

Join Date: Nov 2011
Location: Montegut LA.
Boat: Now we need to get her to Louisiana !! she's ours
Posts: 3,421
Re: I'll show you mine, if you show me yours

Reminds me of am Atlas, But WAY BIGGER !!! with a small flywheel LOL Bob and Connie
__________________
bobconnie is offline   Reply With Quote
Old 28-02-2012, 23:40   #5
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
Re: I'll show you mine, if you show me yours

Bob,

Most of my sailing was with these engines, low speed diesels, 102 ~ 108 rpm range. I do have time with the odd medium speed diesels, 400~900 rpm. The slow speed is very fuel efficient. The 100,000+ hp slow speed engine only burned 60% more fuel than 43,000 hp in a bank of (7) 4.6 Mw medium speed diesels.

One of the seven


OK, show me yours, and remember, "Size doesn't matter"
__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 29-02-2012, 03:55   #6
Registered User

xymotic's Avatar

Join Date: Dec 2007
Posts: 1,076
Re: I'll show you mine, if you show me yours

Quote:
Originally Posted by deckofficer View Post

OK, show me yours, and remember, "Size doesn't matter"
ooooh yeah baby, that one turns me on!!!! Please tell me more about it, brand, model etc.
__________________
xymotic is offline   Reply With Quote
Old 29-02-2012, 05:11   #7
Senior Cruiser

IslandHopper's Avatar

Cruisers Forum Supporter

Join Date: Dec 2009
Location: Bundaberg Queensland/Lake Bolac Victoria, Australia
Boat: 45ft Ketch
Posts: 1,202
Re: I'll Show You Mine, If You Show Me Yours

^^^^^pffft^^^^^

vvvv..Supercharged Diesel Porn, volume up!..vvvv



__________________
IslandHopper is offline   Reply With Quote
Old 29-02-2012, 05:41   #8
Registered User

svHannabel's Avatar

Join Date: Jan 2008
Location: Great Lakes
Boat: Catalina 34
Posts: 253
Re: I'll Show You Mine, If You Show Me Yours

Looks like ballast to me!
__________________
SailFarLiveFree.com
svHannabel is offline   Reply With Quote
Old 29-02-2012, 09:27   #9
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
Re: I'll show you mine, if you show me yours

Quote:
Originally Posted by xymotic View Post
ooooh yeah baby, that one turns me on!!!! Please tell me more about it, brand, model etc.

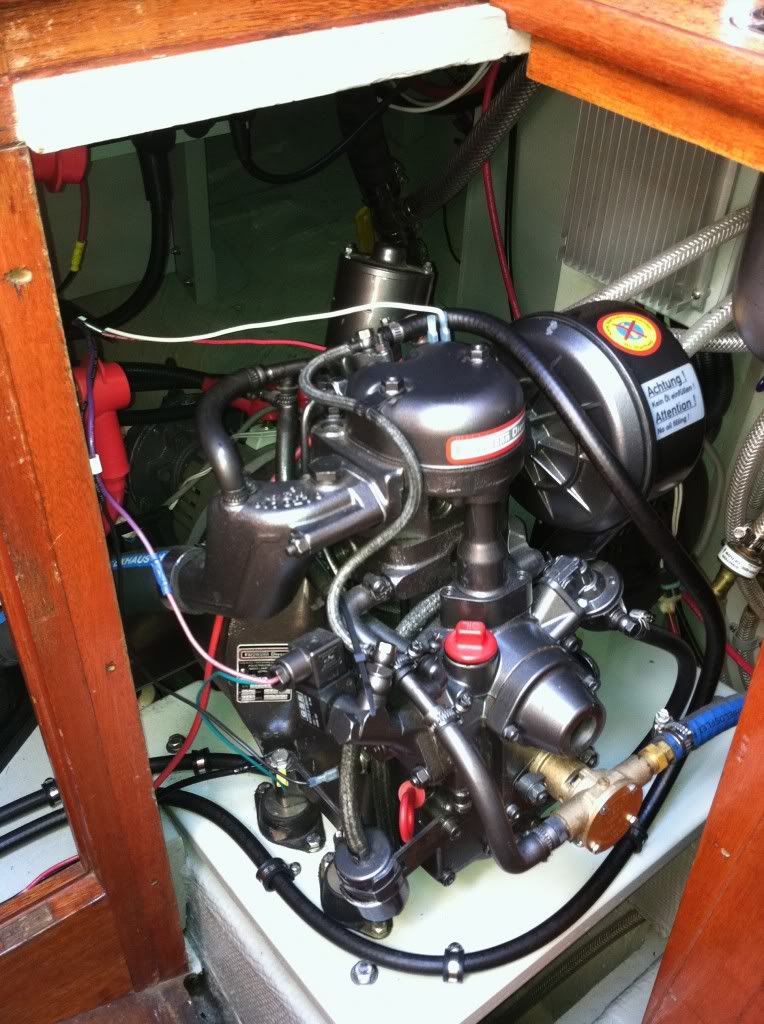

Ferryman Water Cooled Diesel. This Generator is very light, weighing only 170 lbs and can produce 4.2 KW of continuous power.
__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 29-02-2012, 10:02   #10
Senior Cruiser

Sailmonkey's Avatar

Cruisers Forum Supporter

Join Date: Sep 2009
Location: Houston
Boat: '76 Allied Seawind II, 32'
Posts: 5,786
Re: I'll Show You Mine, If You Show Me Yours

And you forgot all about the shaft generator typically hooked to these things.......last one I was around was 70megawatt!!
__________________
Sailmonkey is online now   Reply With Quote
Old 29-02-2012, 10:22   #11
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
Re: I'll Show You Mine, If You Show Me Yours

Quote:
Originally Posted by Sailmonkey View Post
And you forgot all about the shaft generator typically hooked to these things.......last one I was around was 70megawatt!!
That would be about right if diesel-electric drive. On all the container ships I sailed on, all were direct drive. Cruise ships (I've never been on) break them down to 6 engines-generators, and the screws are driven by electric motors. The last drilling ship (rig) I was on had (7) 900 rpm generators, each could produce 4.6 Mw, used for hotel and drilling loads of around 1 Mw, and (6) 5,000 hp electric thrusters to hold position. In heavy weather I could burn 1,000 gallons of diesel (not bunker C) per hour just to hold position.
__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 29-02-2012, 10:27   #12
Senior Cruiser

Sailmonkey's Avatar

Cruisers Forum Supporter

Join Date: Sep 2009
Location: Houston
Boat: '76 Allied Seawind II, 32'
Posts: 5,786
Re: I'll Show You Mine, If You Show Me Yours

Actually I was referring to the ships service generator. Last container ship I was on had a shaft gen, so while at sea the generators(s) could be offline and the propulsion engine would provide power for domestic as well as cargo loads.
__________________
Sailmonkey is online now   Reply With Quote
Old 29-02-2012, 10:36   #13
Registered User

deckofficer's Avatar

Join Date: Feb 2011
Location: Northern and Southern California
Boat: too many
Posts: 4,198
Images: 4
Re: I'll Show You Mine, If You Show Me Yours

Quote:
Originally Posted by Sailmonkey View Post
Actually I was referring to the ships service generator. Last container ship I was on had a shaft gen, so while at sea the generators(s) could be offline and the propulsion engine would provide power for domestic as well as cargo loads.
Tell me more. Did you have to run at a given rpm for frequency regulation?
__________________
Bob
USCG Unlimited Tonnage Open Ocean (CMA)
http://tbuckets.lefora.com/
deckofficer is offline   Reply With Quote
Old 29-02-2012, 10:45   #14
Senior Cruiser

Sailmonkey's Avatar

Cruisers Forum Supporter

Join Date: Sep 2009
Location: Houston
Boat: '76 Allied Seawind II, 32'
Posts: 5,786
Re: I'll Show You Mine, If You Show Me Yours

Yep, the engine was governed at a constant speed, Off the top of my head I can't remember, 70-72 rpm or something like that.
__________________
Sailmonkey is online now   Reply With Quote
Old 29-02-2012, 10:59   #15
CF Adviser

Bash's Avatar

Cruisers Forum Supporter

Join Date: Dec 2008
Location: sausalito
Boat: 14 meter sloop
Posts: 7,260
Re: I'll Show You Mine, If You Show Me Yours

Quote:
Originally Posted by Sailmonkey View Post
Yep, the engine was governed at a constant speed, Off the top of my head I can't remember, 70-72 rpm or something like that.
Interesting. I'm guessing it wasn't a Yanmar.
__________________

__________________
cruising is entirely about showing up--in boat shoes.
Bash is offline   Reply With Quote
