Show Me Your Radar Arch

We've been pondering adding a Radar Arch to One Love. This isn't yet a sure thing but in researching them I've found precious little material on building or buying them. Much of the market is orientated around power boats.

Reasons we're interested in an arch, in descending priority:
1) Place to put solar panals
2) Mount for radar and potentially a wind generator
3) Potential for extra seating in the corners
4) Good place to stow stuff like lines and a stern anchor
5) Another thing to hang onto

Things that concern us:
1) Potentially Ugly.
2) Expensive (Or are they? How much might it cost to get one built custom?)
3) Will it mess with our windvane's operation?

If any of you have pictures of your wonderful arches they would be much appreciated. As would any advice on construction, or links to websites with decent information.

-Tom
__________________

__________________
theonecalledtom is offline   Reply With Quote
Old 27-11-2009, 17:31   #2
Registered User

Join Date: Sep 2009
Location: Marina del Rey, CA
Boat: Deja Vu - Catalina 36 MK I
Posts: 170
I don't have an arch, but in a recent thread on another forum, the topic of an arch on a Pacific Seacraft 37 came up. Aside from it being profoundly ugly, some of the concerns were: 1. That the arch structure would disrupt flow to the windvane and hinder proper operation and 2. That so much weight so far aft would make the boat tend to hobby horse in heavy seas. This would depend on your boat's weight distribution and design and finally, that 3. The weight so high up would effect the boat's capsize ratio and righting moment, potentially a dangerous situation. These might be a few things to think about while you wait for owners with arches to chime in.

Mike
__________________

__________________
MikeinLA is offline   Reply With Quote
Old 27-11-2009, 22:04   #3
Do… or do not

s/v Jedi's Avatar

Cruisers Forum Supporter

Join Date: Feb 2009
Location: in paradise
Boat: Sundeer 64
Posts: 9,198
Here you go; click the photo to get the complete album:


This was done in Grenada.

cheers,
Nick.
__________________
s/v Jedi is offline   Reply With Quote
Old 28-11-2009, 12:52   #4
Registered User

Join Date: Sep 2009
Location: the golden state
Boat: pilot cutter
Posts: 289
And when its not being used as a radar arch, its used to host WWF Wrestlemania cage matches for PPV.
__________________
Not Sure is offline   Reply With Quote
Old 28-11-2009, 13:17   #5
Registered User

Anzo's Avatar

Join Date: Oct 2007
Location: No fixed address
Boat: Hallberg-Rassy Rasmus 35 Berzerker
Posts: 137
I'll likely be getting one too. The link (or one of the links-they keep changing) at the top of the thread look like a promising way to start.
UNI ARCH - Completed Projects - UNI

I think with a little modification I could get happy with that, specially for the price.
__________________
Anzo is offline   Reply With Quote
Old 28-11-2009, 13:30   #6
Senior Cruiser

Vasco's Avatar

Cruisers Forum Supporter

Join Date: Apr 2004
Location: Toronto
Boat: CS36Merlin, "La Belle Aurore" Ben393 "Breathless"
Posts: 7,132

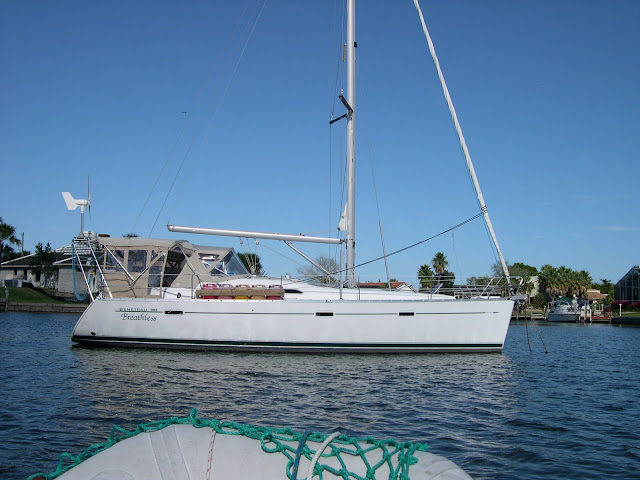

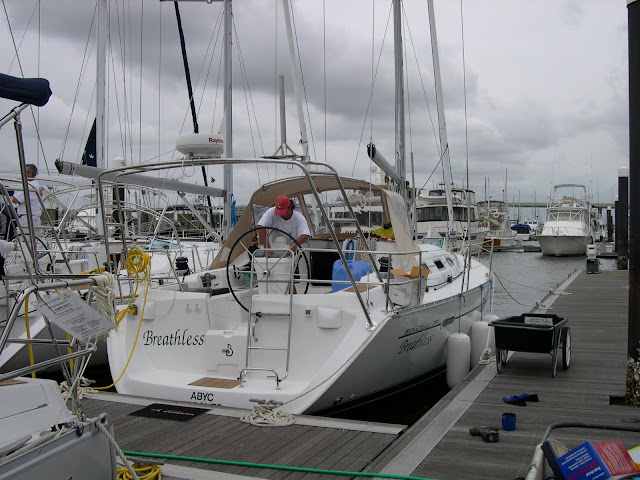

Standard Beneteau 423 arch mounted on a 393. Custom wind generator pole. I hang a 10'06" RIB with a 15hp 2 stroke on it.
