Old 17-07-2013, 08:20   #61
Registered User

mbianka's Avatar

Join Date: Mar 2008
Posts: 2,125
Images: 1
Re: Fuse didn't Blow! Nearly a Fire!!

Probably always a good idea to periodically remove inspect and clean the fuse contacts.
__________________

__________________
Capt. Mike
mbianka is offline   Reply With Quote
Old 17-07-2013, 08:25   #62
Registered User

Teknav's Avatar

Join Date: Jul 2012
Location: Texas - USA
Boat: Twin Otter de Havilland Floatplane
Posts: 1,838
Re: Fuse didn't Blow! Nearly a Fire!!

In a salt/sea water environment, an electrical inspection should be adequate every 4 months.

Mauritz
__________________

__________________
Retired - Don't Ask Me To Do A Damn Thing!
Teknav is offline   Reply With Quote
Old 17-07-2013, 08:50   #63
Nearly an old salt

goboatingnow's Avatar

Cruisers Forum Supporter

Join Date: Jun 2009
Posts: 13,649
Images: 3
Re: Fuse didn't Blow! Nearly a Fire!!

consider HRCI fuses, these are available in the sizes you need , arnt expensive and have sufficient interrupt rating, there are many types of cylinderic fuses that have teh IR you need , yet arnt as expensive as ANL or ANN fuses ,

Take every car type ATC fuse out of the boat and have a ritual burning of them on the dockside.

Dave
__________________
Check out my new blog on smart boat technology, networking and gadgets for the connected sailor! - http://smartboats.tumblr.com
goboatingnow is offline   Reply With Quote
Old 17-07-2013, 08:53   #64
Nearly an old salt

goboatingnow's Avatar

Cruisers Forum Supporter

Join Date: Jun 2009
Posts: 13,649
Images: 3
Re: Fuse didn't Blow! Nearly a Fire!!

note that there are also a range of specific PV panel fuses

see Cooper Bussmann Solar PV Fuses
dave
__________________
Check out my new blog on smart boat technology, networking and gadgets for the connected sailor! - http://smartboats.tumblr.com
goboatingnow is offline   Reply With Quote
Old 17-07-2013, 18:03   #65
Registered User

Join Date: Jun 2013
Location: Melbourne
Boat: Lyle Hess 32
Posts: 38
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by btrayfors View Post
Exactly.

[snip]
Consider the following.

Solar panel output 15A @ 12VDC. Length of one-way run of wire: 20ft (not at all uncommon on a boat).

An AWG14 wire would have a 13% voltage drop, i.e., 1.56 volt drop, with only 10.4 volts at the load end.

An AWG12 wire would have an 8% drop, or almost one volt drop.

It's not until you get to AWG8 when the percentage drop nears 3%.

AWG6 would be better in a solar circuit (2% voltage drop), and AWG4 would be even better (1.27% voltage drop).

In these types of circuits, it's voltage drop that really matters, considering current load and total circuit length.

Ampacity? Not so much!

Bill
G'day Bill,

do you have a calculation method or tables to calculate voltage drop by wire size and length? I'd be very interested in a reference because it's a question I often want to answer.

Regards
Mike
__________________
Pelorus32 is offline   Reply With Quote
Old 17-07-2013, 18:30   #66
Senior Cruiser

Cruisers Forum Supporter

Join Date: Jul 2006
Location: Chesapeake Region and Maine
Boat: 42' Bob Perry sloop
Posts: 4,038
Images: 4
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by Pelorus32 View Post
G'day Bill,

do you have a calculation method or tables to calculate voltage drop by wire size and length? I'd be very interested in a reference because it's a question I often want to answer.

Regards
Mike
Sure. There are dozens of them. Just Google "voltage drop calculator".

One that I like best is on the Genuinedealz.com website:

Voltage Drop Calculator, Amperage Tables, Wire and Cable Technical information

It has both the calculator and ampacity tables. Very handy.

And, should you need any wire or electrical stuff, this is an excellent place to order from. Good prices, free shipping (in U.S.), and very good service.

Bill
__________________
btrayfors is offline   Reply With Quote
Old 17-07-2013, 18:58   #67
CF Adviser

Bash's Avatar

Cruisers Forum Supporter

Join Date: Dec 2008
Location: sausalito
Boat: 14 meter sloop
Posts: 7,260
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by Teknav View Post
In a salt/sea water environment, an electrical inspection should be adequate every 4 months.
Really? A fellow at West Marine just told me that I should lay my anchor chain out once a month to inspect it. And my mechanic says I should check the oil every time I want to use the diesel. And my rigger says....
__________________
cruising is entirely about showing up--in boat shoes.
Bash is offline   Reply With Quote
Old 17-07-2013, 20:03   #68
Registered User

Celestialsailor's Avatar

Join Date: Nov 2006
Location: In Mexico, working on the boat
Boat: Hallberg Rassy 35. and 14ft.Whitehall pulling skiff.
Posts: 8,013
Images: 5
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by Bash View Post
Really? A fellow at West Marine just told me that I should lay my anchor chain out once a month to inspect it. And my mechanic says I should check the oil every time I want to use the diesel. And my rigger says....
Then you could also go on to your Dentist, Doctor and Nutritionists recommendations too. We'd never leave the dock or get out of bed for that matter...
__________________
"Life is not a journey to the grave with the intention of arriving safely in a pretty and well-preserved body, but rather to skid in broadside, thoroughly used up, totally worn out, and loudly proclaiming: Wow - what a ride!"

http://wwwjolielle.blogspot.com/
Celestialsailor is offline   Reply With Quote
Old 18-07-2013, 05:32   #69
Registered User

muskoka's Avatar

Join Date: Jun 2006
Location: Sai Kung, Hong Kong
Boat: FP Lavezzi 40 / Hatteras 48
Posts: 775
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by Bash View Post
Really? A fellow at West Marine just told me that I should lay my anchor chain out once a month to inspect it. And my mechanic says I should check the oil every time I want to use the diesel. And my rigger says....
Don't ask the barber if you need a haircut.....
__________________
muskoka is offline   Reply With Quote
Old 18-07-2013, 11:50   #70
Long Range Cruiser

MarkJ's Avatar

Cruisers Forum Supporter

Join Date: Dec 2007
Location: Australian living on "Sea Life" currently in England.
Boat: Beneteau 393 "Sea Life"
Posts: 12,828
Images: 25
Re: Fuse didn't Blow! Nearly a Fire!!

See muskoka's post re Blue Sea fuse holder (the 30A)

I found one in Budget Marine at USD$38 plus fuse $5.
I pulled the box apart in the shop and found there was F'All inside.

So I comely back homey to the Sea Life of my dreams and made my own.

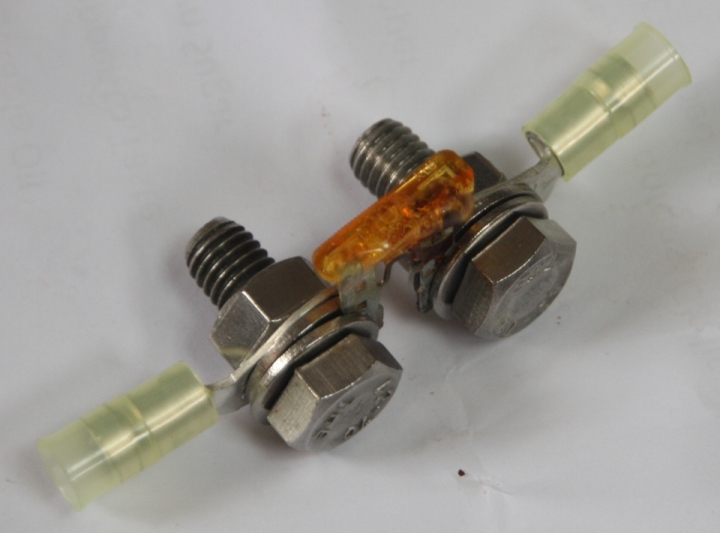

This photos shows it with the old fuse, but I was thinking of useing the bigger Maxi fuse in it (and 40 amps)

This way I could run the AWG 4 lead into it, and out of it. Thus discarding the 4 inches of AWG 12.

I will put it in a pattress box (i.e. an old Coke bottle)

Whadda ya reckon? Apart from not having a brand name on it whats wrong with it?

__________________
Notes on a Circumnavigation.
OurLifeAtSea.com

Somalia Pirates and our Convoy
MarkJ is offline   Reply With Quote
Old 18-07-2013, 12:32   #71
Guy
Registered User

Join Date: Feb 2013
Location: So. Oregon, USA
Boat: Seafarer36c
Posts: 4,308
Re: Fuse didn't Blow! Nearly a Fire!!

Cruisers. Well there is no lock washer for one thing and you have dissimilar metal.
__________________
Guy is offline   Reply With Quote
Old 18-07-2013, 12:44   #72
Long Range Cruiser

MarkJ's Avatar

Cruisers Forum Supporter

Join Date: Dec 2007
Location: Australian living on "Sea Life" currently in England.
Boat: Beneteau 393 "Sea Life"
Posts: 12,828
Images: 25
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by Guy View Post
Cruisers. Well there is no lock washer for one thing and you have dissimilar metal.
The Blueseas has the same metals... a SS base and SS set screws.... so wheres the difference?

and I can use a lock washer.


Next objection?
__________________
Notes on a Circumnavigation.
OurLifeAtSea.com

Somalia Pirates and our Convoy
MarkJ is offline   Reply With Quote
Old 18-07-2013, 12:49   #73
Senior Cruiser

Sailmonkey's Avatar

Cruisers Forum Supporter

Join Date: Sep 2009
Location: Houston
Boat: '76 Allied Seawind II, 32'
Posts: 5,781
Re: Fuse didn't Blow! Nearly a Fire!!

That qualifies as Ghetto fabulous!!!
__________________
Sailmonkey is offline   Reply With Quote
Old 18-07-2013, 13:16   #74
Don't ask if you can't handle it

sailorboy1's Avatar

Cruisers Forum Supporter

Join Date: Jul 2007
Location: On the boat somewhere
Boat: Hunter 410
Posts: 12,319
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by MarkJ View Post

Next objection?

you are going to need those bolts for something else someday
__________________
jobless, houseless, clueless, living on a boat and cruising around somewhere
sailorboy1 is offline   Reply With Quote
Old 18-07-2013, 13:29   #75
Registered User

Join Date: Jun 2009
Location: still in a roll of fiberglass around Cape Town
Boat: Leopard 40 (new model)
Posts: 1,201
Re: Fuse didn't Blow! Nearly a Fire!!

Quote:
Originally Posted by MarkJ View Post
See muskoka's post re Blue Sea fuse holder (the 30A)


Whadda ya reckon? Apart from not having a brand name on it whats wrong with it?

You may want to add some (non-conducting but thermostable) piece of something that is stronger than the plastic and will ensure that the two bolts will not touch each other if the fuse heats up and the yellow (thermoplastic?) plastic melts. Just being devilīs advocate!
C
__________________

__________________
svlamorocha is offline   Reply With Quote
