Raymarine SmartPilot X5 and SeatalkNG

Hello,
I have the smartpilot X5 on my boat, connected to my C-70 display. Recently I purchased the new P70 pilot controller.

However it seems that the Seatalk cable which came with my X5 for the connection to the autopilot does not work anymore, since the new display now has Seatalkng. Fortunately my X5 control board has a Seatalkng connection, however it says "The Course Computer does NOT supply power for SeaTalkng. A SeaTalkng system must be powered from its own separate power supply." and it advises to cut back and insulate yellow and to cut back and insulate "screen". so I was wondering how to hook up the power supply - 12V from my battery?, and which wires to use?


Thanks,
Chris
__________________

__________________
tv195 is offline   Reply With Quote
Old 26-03-2014, 14:37   #2
Registered User

Join Date: Oct 2012
Posts: 33
Re: Raymarine SmartPilot X5 and SeatalkNG

Chris,
Although I have an X-10, this might help...
Click image for larger version

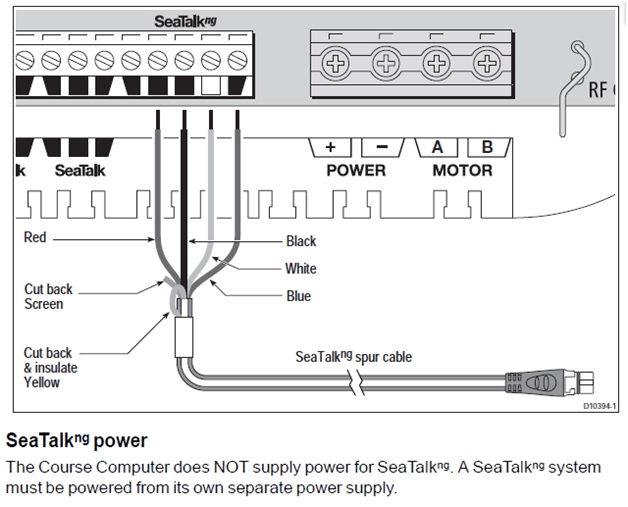

Name:	ImageUploadedByCruisers Sailing Forum1395866240.933483.jpg
Views:	217
Size:	248.3 KB
ID:	78147
__________________

__________________
Jsol is offline   Reply With Quote
Old 26-03-2014, 16:35   #3
Registered User

tv195's Avatar

Join Date: Mar 2014
Location: Brisbane, Australia
Boat: Columbia 34MkII
Posts: 23
Re: Raymarine SmartPilot X5 and SeatalkNG

Thanks, hmm but I don't see a SeatalkNG connection on your foto.
-Chris
__________________
tv195 is offline   Reply With Quote
Old 26-03-2014, 16:58   #4
Senior Cruiser

Opie91's Avatar

Join Date: Apr 2009
Location: CT
Boat: C&C 34
Posts: 811
Re: Raymarine SmartPilot X5 and SeatalkNG

You are going to need a Seatalk ng backbone to hook these two units together and power the head. More $$$ unfortunately

Raymarine SeaTalk NG Starter Kit T70134 | eBay

More info

Raymarine SeaTalk ng Starter Kit
__________________
Opie91 is offline   Reply With Quote
Old 26-03-2014, 17:00   #5
Registered User

Join Date: Oct 2012
Posts: 33
Re: Raymarine SmartPilot X5 and SeatalkNG

The black connection in the upper left goes to an NG spur/converter which is out of view on the right. I have a P70, digital radar and ST 60 (non-NG) instruments tied into a C90W. I have the AP, Radar and CP on individual circuit breakers and the ST 60s on yet another.
__________________
Jsol is offline   Reply With Quote
Old 26-03-2014, 18:07   #6
Registered User

Join Date: Oct 2012
Posts: 33
Re: Raymarine SmartPilot X5 and SeatalkNG

Quote:
Originally Posted by Opie91 View Post
You are going to need a Seatalk ng backbone to hook these two units together and power the head. More $$$ unfortunately

Raymarine SeaTalk NG Starter Kit T70134 | eBay

More info

Raymarine SeaTalk ng Starter Kit

Opie is correct. If you do need one, I may have a spare-never used in the box. If interested PM me and I will dig it up...
__________________
Jsol is offline   Reply With Quote
Old 26-03-2014, 18:25   #7
Registered User

tv195's Avatar

Join Date: Mar 2014
Location: Brisbane, Australia
Boat: Columbia 34MkII
Posts: 23
Re: Raymarine SmartPilot X5 and SeatalkNG

Thanks, everybody. Well, I am in Mexico right now and we want to leave here in a bout 10 days, so my options are limited. Don't think you can send it down here ;-(
