Old 10-04-2014, 11:12   #1
Long Range Cruiser

MarkJ's Avatar

Cruisers Forum Supporter

Join Date: Dec 2007
Location: Australian living on "Sea Life" currently in England.
Boat: Beneteau 393 "Sea Life"
Posts: 12,828
Images: 25
Fire!! Fire:0, Mark:1, Extinguisher:??????

Last night there was a VHF radio call saying a boat was on fire in the anchorage.
I happened to get there first and could see flames well alight in the aft cabin of a centre cockpit boat.

I thought at that stage the fire would be unstoppable and was worried about fuel, gas etc.

No one was on board.

I got on with my new ABC rated 2 kg/4Lb extinguisher the same size as the one on the right in the pic below.

I kicked the hatch open slightly - didn't want to let too much oxygen in - and pulled the trigger of the extinguisher and squirted ONE good squirt and then the extinguisher was empty. About a 10 second squirt, I think. The flame was out but obviously only temporally.

By then a dinghy with a small bucket arrived and passing water up managed to control the fire till a dinghy with a water pump arrived and we put it out absolutely.

I was a bit amazed the extinguisher only lasted 10 seconds! Or seemed like only 10 seconds.

Fire cause unknown.

If it had been an electrical or oil fire we would have been in deep trouble not wanting to use water.

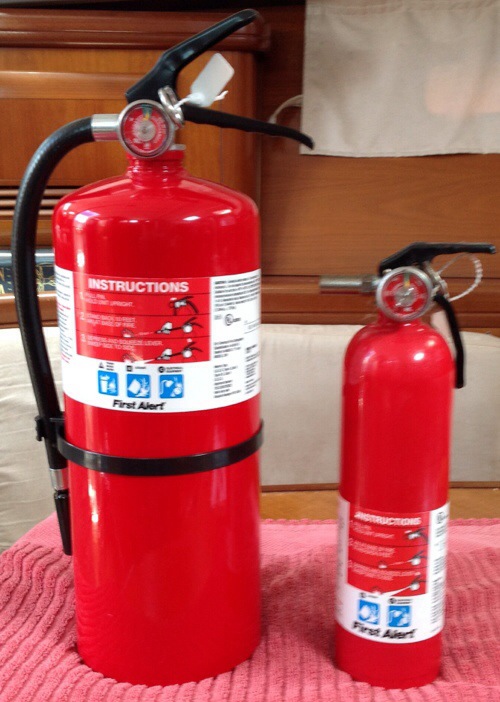

So today I bought the big 10kg/20lb extinguisher in the left of the pic at a hardware store (cheaper than the chandlery).

As it was my first fire actually on a boat (great to practise on someone elses boat! ) it was all a bit of a scary learning experience.

Am I right to think extinguishers are just a temporary measure?
How long should an extinguisher last?
What to do then?
Use Water on an oil or electrical fire after the extinguishers have been used?
What else??


Mark

__________________

__________________
Notes on a Circumnavigation.
OurLifeAtSea.com

Somalia Pirates and our Convoy
MarkJ is offline   Reply With Quote
Old 10-04-2014, 11:28   #2
Registered User

Astrid's Avatar

Join Date: Oct 2008
Location: Northern British Columbia, part of the time in Prince Rupert and part of the time on Moresby Island.
Boat: 50-ft steel Ketch
Posts: 1,885
Send a message via MSN to Astrid Send a message via Yahoo to Astrid
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Hi Mark

Generally most hand held extinguishers will operate for about ten seconds, so yours was fairly typical. This does not give you a whole lot of time, so you should use the extinguisher as efficiently as possible and probably have spares close to hand as well. Normally, one should aim at the base of the fire since that is where oxygen is being pulled from, and not directly at the flames themselves and use a sweeping motion to insure you are cutting of the fire's oxygen supply as thoroughly as you can.

Most extinguishers have general instructions on their use and one should know these before any emergency arises. Different types may require different techniques and safety zones (how far away one should be from the fire when using the extinguisher), as well as what kind of fires the extinguisher can be used with.
__________________

__________________
'Tis evening on the moorland free,The starlit wave is still: Home is the sailor from the sea, The hunter from the hill.
Astrid is offline   Reply With Quote
Old 10-04-2014, 11:33   #3
Senior Cruiser

colemj's Avatar

Cruisers Forum Supporter

Join Date: Oct 2005
Location: Presently on US East Coast
Boat: Manta 40 "Reach"
Posts: 10,049
Images: 12
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Uh, isn't this the third anchorage you have been in when a boat catches fire? Please keep us informed of your movements…

Mark
__________________
www.svreach.com

You do not need a parachute to skydive. You only need a parachute to skydive twice.
colemj is offline   Reply With Quote
Old 10-04-2014, 11:35   #4
Registered User

Join Date: Feb 2011
Posts: 156
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Quote:
Originally Posted by Astrid View Post
Hi Mark

Generally most hand held extinguishers will operate for about ten seconds, so yours was fairly typical. This does not give you a whole lot of time, so you should use the extinguisher as efficiently as possible and probably have spares close to hand as well. Normally, one should aim at the base of the fire since that is where oxygen is being pulled from, and not directly at the flames themselves and use a sweeping motion to insure you are cutting of the fire's oxygen supply as thoroughly as you can.

Most extinguishers have general instructions on their use and one should know these before any emergency arises. Different types may require different techniques and safety zones (how far away one should be from the fire when using the extinguisher), as well as what kind of fires the extinguisher can be used with.


Having had a gasoline fire on board my boat, I'll tell you that all the thoughts about aiming at a specific spot go out your head when looking at flames.
I was fortunate that it happened at a gas dock and the attendant had received training, but he still emptied both of his 20lb extinguishers and had a third one in his hand before someone yelled....IT"S OUT !!!!!!

Nerves take over real fast.....So yes get the big one.

I now have 4 on my 36' Carver
__________________
1000 islands is offline   Reply With Quote
Old 10-04-2014, 11:55   #5
Registered User

CaptTom's Avatar

Join Date: Apr 2004
Location: Southern Maine
Boat: Prairie 36 Coastal Cruiser
Posts: 975
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

I've had several opportunities to unload real extinguishers on real fires - fortunately only in training.

I can't say this enough: PRACTICE with a real extinguisher once or twice at some point in your life. Let your kids, nieces, nephews and their friends practice too.

It is often very easy to put out fires with the small extinguishers we carry ... the second or third try.

I also carry one like the left-hand one in the picture above, and carry a bunch like the right-hand one, mounted within easy reach all over the boat.

No reason not to buy them at the hardware or big-box home store. Just understand what you're buying (BC or ABC) and in the US, look for the CG approval number. If you've ever been to an industrial safety course, you know all about the different classes of extinguisher. If not, no doubt there's a good introduction on line somewhere.
__________________
CaptTom is offline   Reply With Quote
Old 10-04-2014, 12:06   #6
Marine Service Provider

Join Date: Dec 2009
Location: St Augustine, FL
Boat: Woods Vardo 34 Cat
Posts: 2,825
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

They will fire one off in a good captains class to show you how useless those small ones are.
__________________
Check out my MoJo: Facebook.com/mojomarine1
Boatguy30 is offline   Reply With Quote
Old 10-04-2014, 12:13   #7
Registered User

Randy's Avatar

Join Date: Oct 2008
Location: San Diego
Boat: Searunner 31
Posts: 639
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Small extinguishers for small fires, that's all you can expect. It sounds like it worked out well in your case. A person needs to quickly assess the fire parameters and control ventilation like you seem to have done. The key is to act quickly while the fire is manageable and it seems like you got there and acted in the nick of time.
The first step in fuel or electrical fire is to secure the fuel flow or power then ventilation. Another aspect is containment. Prevent fire progression by cooling adjacent spaces (bulkheads and overheads) with water Small vessels usually don't have installed fire suppression systems but there was one for that space once ventilation is secured that would be activated and let it work. Don't open the space introducing oxygen until the space has cooled to around 100 deg F.

Sent from my SAMSUNG-SGH-I337 using Cruisers Sailing Forum mobile app
__________________
Randy is offline   Reply With Quote
Old 10-04-2014, 12:17   #8
Registered User

Red Sky's Avatar

Join Date: Jan 2013
Location: S.F. Bay Area
Boat: Caliber 40 LRC
Posts: 335
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Just the basics here:

Never turn your back to the fire.
Extinguishers operable distance - 8 to 10'.
P.A.S.S. - Pull the pin, Aim at the base of the fire, Squeeze the handle, Sweep the base of the flames.
Most importantly - Know when to quit and evacuate.

The last is even more of an issue on a boat due to the toxicity of the smoke from the burning fiberglass.
__________________
Red Sky is offline   Reply With Quote
Old 10-04-2014, 12:44   #9
Registered User

Join Date: Oct 2008
Boat: Custom cutter, 42'
Posts: 378
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Hey Mark,

First, well done for getting the fire out. That's what counts.

As Astrid said, all handheld extinguishers last for a short time only. The bigger ones do not last longer, they do blow out a larger volume of agent.

The dry chemical types that are commonly seen are very dependent on user technique. As several people have said, you aim at the base of the flames and sweep back and forth. With these extinguishers you need to do it right the first time, as they have a very short duration and they have a very lilmited long term effect on the fire - ie they put it out immediately or they don't.

There are extinguishing agents that have a long term effect on fire. Halon is one - it will continue to inhibit/prevent fire as long as it is in the area. An extremely effective tool for fighting fuel fires in the US Navy is (or at least was, it's been awhile since I was active duty) Light Water. It is a liquid which is mixed with water, only a few percent of the light water is used in the mix. It has an astonishing ability to stop fuel fires by creating a thin film which covers the burning fuel and seperates it from the air. Light Water stays in the fire zone and continues to prevent fire for quite a while. As an example of how effective it is, as a demonstration we used to take a bucket of gasoline, pour a tiny amount of the light water into the bucket and then try to light the gas. You could get it to ignite by vigorously stirring the gas, this would break the surface film and it would ignite. But it would go back out as soon as you stopped stirring. If you can work out a way to spray/dump it on a fire it is extremely effective.
__________________
Pauls is offline   Reply With Quote
Old 10-04-2014, 12:54   #10
Registered User

Join Date: Aug 2013
Posts: 1
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Quote:
Originally Posted by CaptTom View Post
Just understand what you're buying (BC or ABC) and in the US, look for the CG approval number. If you've ever been to an industrial safety course, you know all about the different classes of extinguisher. If not, no doubt there's a good introduction on line somewhere.
When performing safety training in the past, we were told the following way to remember fire extinguisher classifications:

A = any fire that creates Ash
B = any fire that would cause a Boom
C = any fire from a Charge
D = there wasn't anything clever here, just fires due to metals

Not sure if this is helpful, but I still remember this 20 years later.
__________________
DoubleTrouble is offline   Reply With Quote
Old 10-04-2014, 13:07   #11
Registered User

ReMetau's Avatar

Join Date: Oct 2010
Location: Marathon, FL
Boat: Hans Christian 33
Posts: 648
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

10 seconds sounds about right to me, but if you weren't directly aiming it at the source or base of the fire, then it wouldn't do much. It probably helped in your situation by helping to reduce the oxygen to the fire, but temporarily at best.
__________________
Don & Diana
s/v ReMetau - a Hans Christian 33
http://www.remetau.com
ReMetau is offline   Reply With Quote
Old 10-04-2014, 13:24   #12
Registered User

denverd0n's Avatar

Join Date: Jun 2008
Location: Tampa, FL
Posts: 3,950
Images: 6
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Good job responding and getting the fire out. And, yeah, nice to practice on someone else's boat!

One thing I know for sure is that, of the people I know who have had to use a fire extinguisher for real, not a single one of them ever complained that it was too big. And most would have liked to have had two or three more. That tells me that, if you have the room for more/larger fire extinguishers... GET THEM!

Definitely not the place where you want to save money by getting the very minimum required by law.
__________________
denverd0n is offline   Reply With Quote
Old 10-04-2014, 13:49   #13
Registered User

Khagan1227's Avatar

Join Date: Oct 2010
Location: Kansas City, MO
Boat: In the hunt again, unknown
Posts: 1,330
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Quote:
Originally Posted by MarkJ View Post
Last night there was a VHF radio call saying a boat was on fire in the anchorage.
I happened to get there first and could see flames well alight in the aft cabin of a centre cockpit boat.

I thought at that stage the fire would be unstoppable and was worried about fuel, gas etc.

No one was on board.

I got on with my new ABC rated 2 kg/4Lb extinguisher the same size as the one on the right in the pic below.

I kicked the hatch open slightly - didn't want to let too much oxygen in - and pulled the trigger of the extinguisher and squirted ONE good squirt and then the extinguisher was empty. About a 10 second squirt, I think. The flame was out but obviously only temporally.

By then a dinghy with a small bucket arrived and passing water up managed to control the fire till a dinghy with a water pump arrived and we put it out absolutely.

I was a bit amazed the extinguisher only lasted 10 seconds! Or seemed like only 10 seconds.

Fire cause unknown.

If it had been an electrical or oil fire we would have been in deep trouble not wanting to use water.

So today I bought the big 10kg/20lb extinguisher in the left of the pic at a hardware store (cheaper than the chandlery).

As it was my first fire actually on a boat (great to practise on someone elses boat! ) it was all a bit of a scary learning experience.

Am I right to think extinguishers are just a temporary measure?
How long should an extinguisher last?
What to do then?
Use Water on an oil or electrical fire after the extinguishers have been used?
What else??


Mark

The 4 lb variety (right) should last 13 - 15 seconds. In a fire the difference between 10 and 13 seconds is nothing. The 40 lb (left) only lasts 30 seconds. Use short bursts and have a second or third one handy. If you can't get the fire out with one, you might want to evacuate and let the professionals handle the fire.
Khagan1227 is offline   Reply With Quote
Old 10-04-2014, 13:58   #14
Registered User

Red Sky's Avatar

Join Date: Jan 2013
Location: S.F. Bay Area
Boat: Caliber 40 LRC
Posts: 335
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Quote:
Originally Posted by DoubleTrouble View Post
When performing safety training in the past, we were told the following way to remember fire extinguisher classifications:

A = any fire that creates Ash
B = any fire that would cause a Boom
C = any fire from a Charge
D = there wasn't anything clever here, just fires due to metals

Not sure if this is helpful, but I still remember this 20 years later.

DT,

That's the best mnemonic I've ever seen to memorize the ABC. Thanks.

RS
__________________
Red Sky is offline   Reply With Quote
Old 10-04-2014, 14:02   #15
Long Range Cruiser

MarkJ's Avatar

Cruisers Forum Supporter

Join Date: Dec 2007
Location: Australian living on "Sea Life" currently in England.
Boat: Beneteau 393 "Sea Life"
Posts: 12,828
Images: 25
Re: Fire!! Fire:0, Mark:1, Extinguisher:??????

Quote:
Originally Posted by Khagan1227 View Post
If you can't get the fire out with one, you might want to evacuate and let the professionals handle the fire.
Calls on VHF 16 went unanswered. Either by Coast Guard or any of the superyachts. Only the cruisers monitoring VHF 10 responded.

When cruising away from the USA, UK, Australia etc, cruisers are on their own.
Absolutely on their own.

Also last night at 4 am there was a robbery on a boat about a mile from the fire. The police arrived at 3pm. PM!!! Again, cruisers responded scaring the crooks away before anything was taken.



Quote:
Originally Posted by colemj View Post
Uh, isn't this the third anchorage you have been in when a boat catches fire? Please keep us informed of your movements…

Mark
I was NOWHERE near the last one! At least 100 meters!

And that boat was worth $6 million and only 3 years old.


Ok, I will warn when I move

__________________

__________________
Notes on a Circumnavigation.
OurLifeAtSea.com

Somalia Pirates and our Convoy
MarkJ is offline   Reply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Fire Extinguisher damage ?? JimmyP Engines and Propulsion Systems 6 10-10-2012 15:31
Fire Extinguisher Nomenclature F51 Auxiliary Equipment & Dinghy 5 14-03-2012 20:27
Cold Fire Extinguisher Ashura Health, Safety & Related Gear 1 26-11-2011 06:01
USCG fire extinguisher regulations require tagging? elf Rules of the Road, Regulations & Red Tape 13 23-08-2007 19:40
Where does the fire extinguisher go? Kai Nui Health, Safety & Related Gear 11 28-11-2005 20:06



Copyright 2002- Social Knowledge, LLC All Rights Reserved.

All times are GMT -7. The time now is 18:08.


Google+
Powered by vBulletin® Version 3.8.8 Beta 1
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Social Knowledge Networks
Powered by vBulletin® Version 3.8.8 Beta 1
Copyright ©2000 - 2017, vBulletin Solutions, Inc.

ShowCase vBulletin Plugins by Drive Thru Online, Inc.
