Using SSB to Obtain NavTex Weather Reports

hi folks
new member here,living in wales uk,hoping to go cruising long term soon ,in rival 34.
anyone know how [in laymans terms]to obtain navtex weather reports,useing an ssb radio and laptop ,keep it simple ,ta
__________________

__________________
kanaka is offline   Reply With Quote
Old 21-01-2008, 14:05   #2
Registered User

georgelewisray's Avatar

Join Date: Nov 2007
Location: Cape Fear, NC, USA
Boat: Tom Colvin, Clipper Pinky, Spar length 56'
Posts: 37
Images: 1

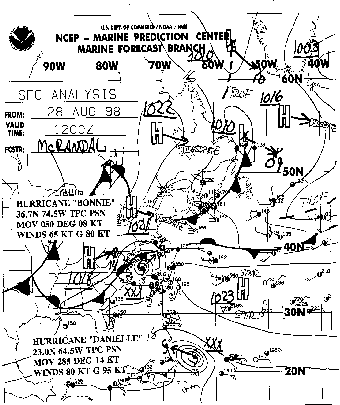

Wx-Fax on your computer requires a SSB (single side band) radio receiver, a patch cord from radio headphone jack to computer microphone input and some SW to turn sound data into a picture. Assuming you can figure out the fax transmission schedule and how to tune the SSB radio.

My radio: Sangean ATS-909 and Radio Shack DX-398


Good Luck!!!

Some tech stuff from internet:

HF-Fax

First at all you need a Single Side Band (SSB) Receiver, tune in to a Fax
signal, in the Upper Side Band (USB), at a frequency 1.9 KHz lower as given in theFrequencies lists.
Example to tune in Northwood on 11.086.5 KHz set your Receiver to 11.084,6 KHz.

The most Fax transmissions are send with a LPM (RPM) of 120 and a IOC (sometimes called Module) of 576.
Only stations with Russian equipment sometimes use RPM 60 or 90 and sometimes a IOC of 288.
Photofax transmissions such as from north Korea use RPM 60 and a IOC 352 with gray tones, and satellite rebroadcast use also RPM 120 IOC 576, with gray tones (4 or more bit Depth)

For software decoding best way is to decode with Black and White (2 bit Depth).

The Start-tone is 95 % black and 5 % white with tones with a duration of 15 to 20 seconds (called phasing) (300 Hz), the stopsignal is 450 Hz, and this is called Automatic Picture Transmission ( APT).

Now you should heard the typical "Scratch" sound from a Fax signal, with white-tones are send with 2300 Hz, and black-tones are send with 1500 Hz.

If you use Software for decoding Fax transmissions, use B&W with 2 bit Depth for the B&W weather charts

..................

http://www.cruisingclub.org/pdfs/dl....ts_wxsched.pdf
__________________

__________________
There is so much good in the worst of us, and so much bad in the best of us, it doesn't behoove any of us to speak evil of the rest of us
― Edgar Cayce
georgelewisray is offline   Reply With Quote
Old 07-01-2010, 02:24   #3
Registered User

Join Date: Dec 2007
Posts: 26
Hello, I do have a Icom IC M 710, and also a world receiver radio Sonny. What do I need to receive weather faxes on my laptop. Regards. mbu745
__________________
mbu745 is offline   Reply With Quote
Old 07-01-2010, 04:17   #4
CF Adviser
Moderator Emeritus

Hud3's Avatar

Cruisers Forum Supporter

Join Date: Sep 2007
Location: Virginia
Boat: Island Packet 380, now sold
Posts: 8,929
Images: 49
There's quite a bit of discussion in past threads about this...

SSB Receiver Advice / Degen 1103

How do I set myself up with weatherfax?

weather fax

Weather Faxes Worth the Effort?
__________________
Hud
Hud3 is offline   Reply With Quote
Old 07-01-2010, 06:26   #5
Senior Cruiser

Cruisers Forum Supporter

Join Date: Aug 2009
Location: between the devil and the deep blue sea
Boat: a sailing boat
Posts: 17,314
I believe the original question was NAVTEX,

Thus:

Get jvcomm, or Mscan meteo software. Reed the manual and off you go. Both receive NAVTEX (Fax too).

Offshore I would use fax more than NAVTEX. Fax can be gotten over longer ranges. But the nav warnings are very convenient with NAVTEX.

Unfortunately, the simplest setups fail at one thing - you have to be tuned in / turned on to receive. Anything that is automated (e.g. a dedicated NAVTEX receiver) is a great help. A dedicated weather fax machine is also nice to have. Not cheap though.

b.
__________________
barnakiel is offline   Reply With Quote
Old 07-01-2010, 07:22   #6
Senior Cruiser

Talbot's Avatar

Cruisers Forum Supporter

Join Date: Jun 2004
Location: Brighton, UK
Boat: Privilege 37
Posts: 3,579
Images: 32
I believe that knowledge of weather and how it works is an essential skill for the cruising sailor.

The best laymen's guide is on Frank Singletons web site at Franks-Weather / Frank Singleton's Weather and Sailing Pages | The Weather Window
__________________
"Be wary of strong drink. It can make you shoot at tax collectors - and miss."
Robert A Heinlein
Talbot is offline   Reply With Quote
Old 07-01-2010, 08:22   #7
Senior Cruiser

Cruisers Forum Supporter

Join Date: Mar 2007
Location: Santa Cruz
Boat: Boatless Again
Posts: 4,330
Navtex signals are 518 khz, and can be decoded with JvComm, but its not very convenient.
__________________
donradcliffe is offline   Reply With Quote
Old 17-02-2010, 07:19   #8
Registered User

basile's Avatar

Join Date: Jan 2010
Location: actually in Brazil
Boat: sadler 32
Posts: 27
Send a message via MSN to basile Send a message via Skype™ to basile
I've been using jvcom for years now
receiving fax & navtex via a yeasu ft859
works fine
only trouble I have is on weak signals because the pc sends out some interference
greetz
Bas
__________________
basile is offline   Reply With Quote
Old 17-02-2010, 13:53   #9
Nearly an old salt

goboatingnow's Avatar

Cruisers Forum Supporter

Join Date: Jun 2009
Posts: 13,649
Images: 3
given that navtex dedicated receivers are pence, youd be better off buying one then rigging up you ssb,
__________________
goboatingnow is offline   Reply With Quote
Old 19-02-2010, 03:48   #10
Registered User

basile's Avatar

Join Date: Jan 2010
Location: actually in Brazil
Boat: sadler 32
Posts: 27
Send a message via MSN to basile Send a message via Skype™ to basile
yes, that's the simpliest solution
though I am curious, what range do these dedicated receivers have
with my rigg I regularly receive stations more than 300miles ahaed

tropical greetz

Bas
__________________
Citizen of the Planet - http://bahia.basix.cc
basile is offline   Reply With Quote
Old 19-02-2010, 06:16   #11
Registered User

Join Date: Dec 2007
Posts: 26
Hello Basile and the others, thank you for the information. I shopped around and this German program JVCOMM looks great. I gone use my world receiver radio Sonny because of the power consumption. Now I have to find the software to download. Regards. Mbu745
__________________
mbu745 is offline   Reply With Quote
Old 19-02-2010, 12:08   #12
Nearly an old salt

goboatingnow's Avatar

Cruisers Forum Supporter

Join Date: Jun 2009
Posts: 13,649
Images: 3
my experience with a dedicated Navtex receiver , is that I get about 80 miles in general and sometimes, upto about 150 miles with certain stations. A useful feature to have is a GPS feed which allows the receiver to tune out stations that arnt useful and move to new stations as you sail along. Otherwise you gets loads of junk or corrupted mesages or just stuff that isnt revelant.

I find it my best weather forecast source. ( in Europe).
