DIY Ropeye deck eyes?

These seem like they would be fairly easy to make your own. I was thinking a piece of dyneema tied into a loop with a button knot. Pass this through a small as possible hole in a g10 backing plate.
The harder part would be keeping the fitting water tight. You could fill hole in the deck around the dyneema with sealant, but won't look great and probably leak a little bit. Any better ideas to waterproof the hole in the deck? Maybe a watertight electrical compression fitting?
Attached Thumbnails
Click image for larger version

Name:	Ropeye_PRO_2.jpg
Views:	117
Size:	44.0 KB
ID:	156866   Click image for larger version

Name:	2HXZ9_AS01.jpg
Views:	109
Size:	49.3 KB
ID:	156867

__________________

__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 06:32   #2
CF Adviser

Cruisers Forum Supporter

Join Date: Aug 2009
Boat: Custom Van De Stadt 47 Samoa
Posts: 3,783
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by mrybas View Post
Any better ideas to waterproof the hole in the deck?
Screw cap underneath the deck, fill with silicon and screw closed.

Make sure you smoothly round all the edges of the hole thru the deck.

Also local reinforcement of the deck around the hole, with tapered edges, is usually prudent.

But you are right, they are easy to replicate.
__________________

__________________
estarzinger is offline   Reply With Quote
Old 29-09-2017, 06:44   #3
Writing Full-Time Since 2014

thinwater's Avatar

Join Date: Nov 2008
Location: Deale, MD
Boat: PDQ Altair, 32/34
Posts: 4,439
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by mrybas View Post
These seem like they would be fairly easy to make your own. I was thinking a piece of dyneema tied into a loop with a button knot. Pass this through a small as possible hole in a g10 backing plate.
The harder part would be keeping the fitting water tight. You could fill hole in the deck around the dyneema with sealant, but won't look great and probably leak a little bit. Any better ideas to waterproof the hole in the deck? Maybe a watertight electrical compression fitting?
1. Water is going to wick down the inline of the line.

2. You'll need a bushing at the deck to prevent the line for either chafing on the FRP or tearing through it. From what I've seen load lines do to FRP, I think metal is better.

An interesting engineering challenge, if you want it to take high load in all directions and remain watertight.
__________________
Gear Testing--Engineering--Sailing

Writing full-time since 2014.
Bookstore:http://sail-delmarva.blogspot.com/20...ook-store.html
thinwater is offline   Reply With Quote
Old 29-09-2017, 06:53   #4
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by thinwater View Post
1. Water is going to wick down the inline of the line.

2. You'll need a bushing at the deck to prevent the line for either chafing on the FRP or tearing through it. From what I've seen load lines do to FRP, I think metal is better.

An interesting engineering challenge, if you want it to take high load in all directions and remain watertight.


2. What about if the hole through the deck/hull was significantly over sized, then this area filled with sealant? The dyneema would be free to articulate without touching the hole through the deck. This would probably only work in applications where the load is always in the same direction, as too much movement of the eye would break the sealant's watertightness.
__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 07:01   #5
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

The application I had in mind was to replace the fitting where the bow sprit stays attach to the hull. The load direction doesn't change much, so chafe against the glass shouldn't be an issue. I'll likely use a a glass tube that is epoxied into the hull for the pass through area between inner and out hull skins. I can sand the inner lip of the tube to have a nice rounded edge.
Click image for larger version

Name:	IMG_0571.JPG
Views:	104
Size:	61.4 KB
ID:	156872Click image for larger version

Name:	IMG_0572.JPG
Views:	104
Size:	84.2 KB
ID:	156873Click image for larger version

Name:	IMG_0573.JPG
Views:	93
Size:	68.0 KB
ID:	156874
__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 07:10   #6
Senior Cruiser

Blue Stocking's Avatar

Cruisers Forum Supporter

Join Date: Dec 2008
Location: St. Georges, Bda
Boat: Rhodes Reliant 41ft
Posts: 4,119
Re: DIY Ropeye deck eyes?

Not being facetious, is this an engineering exercise, or do you have a specific need and purpose requiring this fitting. I used low St. Steel padeyes with low friction rings lashed on , on a visiting boat.
__________________
so many projects--so little time !!
Blue Stocking is online now   Reply With Quote
Old 29-09-2017, 07:16   #7
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by Blue Stocking View Post
Not being facetious, is this an engineering exercise, or do you have a specific need and purpose requiring this fitting. I used low St. Steel padeyes with low friction rings lashed on , on a visiting boat.
is above not specific enough?
__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 07:18   #8
Registered User

UNCIVILIZED's Avatar

Join Date: Jun 2014
Location: Up the mast, looking for clean wind.
Boat: Currently Shopping, & Heavily in LUST!
Posts: 5,629
Re: DIY Ropeye deck eyes?

When one looks at the prices for these, it's easy to see why one would want to DIY them.
So you're thinking:
- Oversized hole in the deck with smoothed edges, plus localized deck reinforcement.
- G-10 backing plate, with small hole for spectra loop.
- Spectra loop through G-10 plate, with button knot acting as restrainer.
- Sealant around spectra at deck penetration.
Mechanical WT cover filled with sealant on underside/back side of spectra loop
Do I have that right?
__________________

The Uncommon Thing, The Hard Thing, The Important Thing (in Life): Making Promises to Yourself, And Keeping Them.
UNCIVILIZED is offline   Reply With Quote
Old 29-09-2017, 07:22   #9
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by UNCIVILIZED View Post
When one looks at the prices for these, it's easy to see why one would want to DIY them.
So you're thinking:
- Oversized hole in the deck with smoothed edges, plus localized deck reinforcement.
- G-10 backing plate, with small hole for spectra loop.
- Spectra loop through G-10 plate, with button knot acting as restrainer.
- Sealant around spectra at deck penetration.
Mechanical WT cover filled with sealant on underside/back side of spectra loop
Do I have that right?
Yes, more or less what I was thinking. You could make them in a couple hours and cost maybe $25-50 in material (depending on how beefy you needed).
__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 07:29   #10
Registered User

UNCIVILIZED's Avatar

Join Date: Jun 2014
Location: Up the mast, looking for clean wind.
Boat: Currently Shopping, & Heavily in LUST!
Posts: 5,629
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by mrybas View Post
Yes, more or less what I was thinking. You could make them in a couple hours and cost maybe $25-50 in material (depending on how beefy you needed).
Do you have a source for, or thoughts on, WT covers for the backsides?
__________________

The Uncommon Thing, The Hard Thing, The Important Thing (in Life): Making Promises to Yourself, And Keeping Them.
UNCIVILIZED is offline   Reply With Quote
Old 29-09-2017, 07:31   #11
Writing Full-Time Since 2014

thinwater's Avatar

Join Date: Nov 2008
Location: Deale, MD
Boat: PDQ Altair, 32/34
Posts: 4,439
Re: DIY Ropeye deck eyes?

There is always the old school approach. These can also be made by splaying the fibers out inside the hull or deck, providing both a backing plate and load distribution. Becoming common for chain plates.

__________________
Gear Testing--Engineering--Sailing

Writing full-time since 2014.
Bookstore:http://sail-delmarva.blogspot.com/20...ook-store.html
thinwater is offline   Reply With Quote
Old 29-09-2017, 07:32   #12
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by UNCIVILIZED View Post
Do you have a source for, or thoughts on, WT covers for the backsides?
No, still trying to figure that one out. The button knot will be tight against the g10 backing plate, so this seems like a tough spot to try and make watertight. Maybe its easier to try and waterproof from the outside where the dyneema passes into the boat?
__________________
mrybas is offline   Reply With Quote
Old 29-09-2017, 07:40   #13
Registered User

mrybas's Avatar

Join Date: May 2010
Location: East Coast USA or out cruising
Boat: Lock Crowther 150
Posts: 415
Re: DIY Ropeye deck eyes?

Quote:
Originally Posted by thinwater View Post
There is always the old school approach. These can also be made by splaying the fibers out inside the hull or deck, providing both a backing plate and load distribution. Becoming common for chain plates.



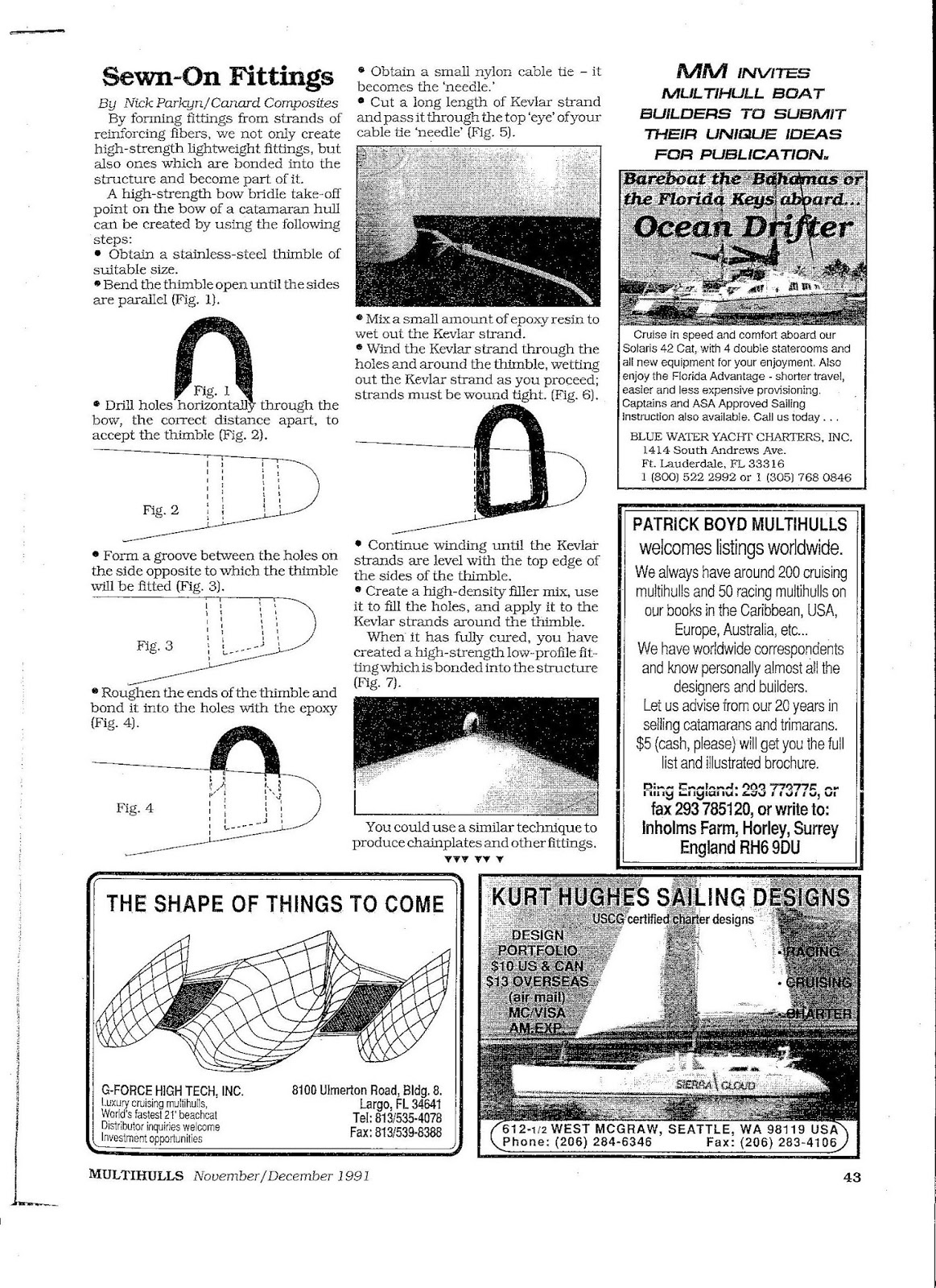

When old school becomes new school. Here are my chainplates:
Click image for larger version

Name:	IMG_0087.JPG
Views:	106
Size:	70.8 KB
ID:	156875Click image for larger version

Name:	IMG_0092.JPG
Views:	116
Size:	73.5 KB
ID:	156876Click image for larger version

Name:	IMG_0112.JPG
Views:	102
Size:	65.8 KB
ID:	156877
__________________
mrybas is offline   Reply With Quote
