Stuck Filter Housing

Pickled my Spectra Catalina 300 longer than planned....about 1 year...using propylene glycol. Good news..the system is fine...bad news is the cylindrical filter housing on the pre filter is stuck solid. Cant get off to change prefilter. And Im now in the San Blas with friends aboard, so damn sure dont want to break anything.

Suggestions on how to loosen this up? Tellie? Rich?
__________________

belizesailor is offline   Reply With Quote
Old 08-03-2018, 14:53   #2
Senior Cruiser

Cruisers Forum Supporter

Join Date: May 2013
Location: Oregon to Alaska
Boat: Wheeler Shipyard 83' ex USCG
Posts: 2,017
Re: Stuck Filter Housing

Use a large strap wrench on the housing with a piece of pipe to extend the handle for more torque. Also support the top with more than just your plumbing. Tapping the strap wrench handle with a hammer will loosen w/o breaking like brute force can do.
Next time use food grade lube on the rubber o-ring. It's the stuff dairymen put on the gaskets between milk line pipes and they use in processing plants. Available online and maybe in an autoparts store.
Attached Thumbnails
Click image for larger version

Name:	Haynes Food Grade.jpg
Views:	57
Size:	19.8 KB
ID:	165718   Click image for larger version

Name:	Food Grade Silicone.jpg
Views:	59
Size:	23.8 KB
ID:	165719

__________________

Lepke is offline   Reply With Quote
Old 08-03-2018, 21:57   #3
Registered User

pesarsten's Avatar

Join Date: Jan 2012
Location: St Pete
Boat: Sabre 34
Posts: 512
Re: Stuck Filter Housing

You can find Jacks 327 oring lube in most pool supply stores. It is Dow silicone food grade lube and sold by dealers of pool equipment that sell Hayward brand products.
__________________
All that is necessary for the triumph of evil is that good men do nothing. Edmund Burke
pesarsten is offline   Reply With Quote
Old 08-03-2018, 22:22   #4
Registered User

Join Date: Oct 2012
Location: Home for a couple of years.
Boat: Beneteau 49
Posts: 406
Re: Stuck Filter Housing

A rubber strap wrench can help.



https://www.amazon.com/Craftsman-Pie...+wrench+rubber
boom23 is offline   Reply With Quote
Old 09-03-2018, 04:43   #5
Sponsoring Vendor

Tellie's Avatar

Community Sponsor

Join Date: Oct 2007
Location: Hollywood, Fl.
Boat: FP Athena 38' Poerava
Posts: 3,143
Re: Stuck Filter Housing

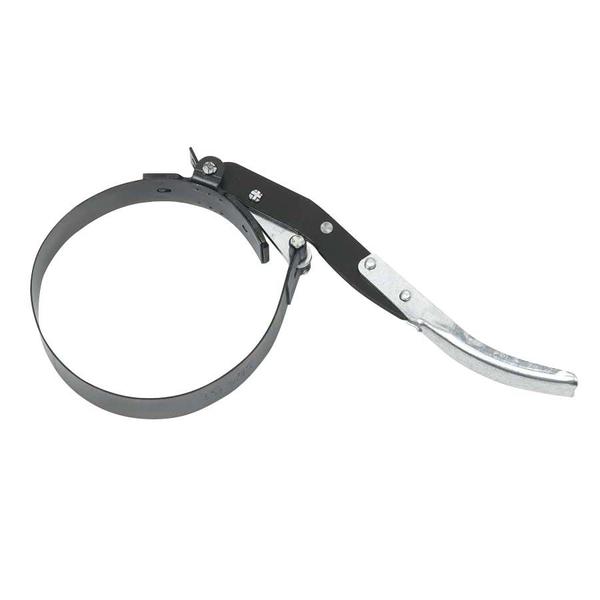

This is not that uncommon. The high pressure filter housing found on older systems is after the feed pump not before like they are now. This filter housing sees a lot of expansion under the feed pumps operation and they tend to expand and really seat themselves in even the well lubricated ones. What I prefer and seems to work 99% of the time is an oil filter wrench, hopefully shown below. This will give you far more leverage and control. If this fails you may have to disassemble the filter housing and clamp the filter housing head in a vice and a pipe wrench will work.

https://www.autozone.com/shop-and-ga...ers/548380_0_0
Tellie is offline   Reply With Quote
Old 09-03-2018, 10:31   #6
Registered User

Join Date: Jan 2008
Location: SF Bay Area (Boat in La Paz)
Boat: Valiant V40
Posts: 514
Re: Stuck Filter Housing

If all else fails, replace the filter housing. They are a standard size and readily available even in Mexico. I know for certain they are available in La Cruz, possibly your next destination if you can't find them in San Blas (and if you can't find them there, you are probably asking the wrong people.)
jamhass is offline   Reply With Quote
Old 09-03-2018, 16:53   #7
Sponsoring Vendor

Tellie's Avatar

Community Sponsor

Join Date: Oct 2007
Location: Hollywood, Fl.
Boat: FP Athena 38' Poerava
Posts: 3,143
Smile Re: Stuck Filter Housing

Quote:
Originally Posted by jamhass View Post
If all else fails, replace the filter housing. They are a standard size and readily available even in Mexico. I know for certain they are available in La Cruz, possibly your next destination if you can't find them in San Blas (and if you can't find them there, you are probably asking the wrong people.)


Hi Jamhass, This is not a standard pre-filter housing and installing a standard housing on the output side of a Catalina feed pump won't work as they are not capable of handling the higher pressures and will certainly bust open. Now if the system is re-plumbed with a lower pressure standard filter housing on the input side then there won't be a problem. But then it becomes more important to have a small boost pump before this so as not to reduce inflow to the feed pump which makes it a far more expensive fix opposed to a new high pressure filter housing. Things I've learned along the way.
Tellie is offline   Reply With Quote
Old 12-03-2018, 05:15   #8
Registered User

Join Date: Dec 2010
Location: W Carib
Boat: Wildcat 35, Hobie 33
Posts: 9,346
Re: Stuck Filter Housing

Thanks all. Ive tried the strap wrench...still stuck. My concern about applying more leverage is breaking the non-standard filter housing head...then Im screwed.

Fortunately the system is running well with all numbers normal.

I do use silicon grease on the o-ring but not on threads...will start doing that in the future. May try and squirt some silicon up into the threads between the filter housing halves...maybe several attempts at that will get some up in there.
belizesailor is offline   Reply With Quote
Old 23-06-2018, 13:21   #9
Registered User

Join Date: Dec 2010
Location: W Carib
Boat: Wildcat 35, Hobie 33
Posts: 9,346
Re: Stuck Filter Housing

To follow up on this, what ended up working for me was my trusty old BIG ASS SCREWDRIVER. Put a few layers of duct tape over the tip (flat head), so that it didnt make such an effective chisel (learned that on the first try ), place against one of the vertical ridges on the filter housing that the filter wrench fits over, and give it a few good solid raps with a hammer...problem solved.

Turned out that all 4 of my filter housings were stuck!

I also squirted silicon under the lip of the housing, where the long filter housing screws into the housing head, using the little red tube that comes with such spray products. I did this for a few days before trying again. Not sure it helped, but couldnt hurt.

Generously lubed o-rings and filter housing threads with silicon grease before reassembling.
belizesailor is offline   Reply With Quote
Old 23-06-2018, 13:29   #10
Registered User

zboss's Avatar

Join Date: Sep 2011
Location: On a boat
Boat: Cabo Rico 38
Posts: 3,683
Re: Stuck Filter Housing

Those strap wrenches suck. I bought one of these and they work much much better... https://m.sears.com/search=oil+filter+wrench
zboss is offline   Reply With Quote
Old 23-06-2018, 14:36   #11
Writing Full-Time Since 2014

thinwater's Avatar

Join Date: Nov 2008
Location: Deale, MD
Boat: PDQ Altair, 32/34
Posts: 5,061
Re: Stuck Filter Housing

Quote:
Originally Posted by zboss View Post
Those strap wrenches suck. I bought one of these and they work much much better... https://m.sears.com/search=oil+filter+wrench

Exactly. I think it's the same size that fit the filters on my Ford. Get the right tool for the job.



And yes, silicon grease on the threads.

__________________
Gear Testing--Engineering--Sailing
Writing full-time since 2014
http://sail-delmarva.blogspot.com/
thinwater is offline   Reply With Quote
Old 23-06-2018, 14:45   #12
Registered User

Join Date: Feb 2013
Location: Lago de Izabal, Guatemala
Boat: Seafarer36c
Posts: 4,610
Re: Stuck Filter Housing

Quote:
Originally Posted by jamhass View Post
If all else fails, replace the filter housing. They are a standard size and readily available even in Mexico. I know for certain they are available in La Cruz, possibly your next destination if you can't find them in San Blas (and if you can't find them there, you are probably asking the wrong people.)
I think he is in the wrong San Blas for a couple of reasons. It's a fun town.
Ecos is offline   Reply With Quote
Old 23-06-2018, 20:07   #13
Registered User

Join Date: Dec 2010
Location: W Carib
Boat: Wildcat 35, Hobie 33
Posts: 9,346
Re: Stuck Filter Housing

Quote:
Originally Posted by Ecos View Post
I think he is in the wrong San Blas for a couple of reasons. It's a fun town.
San Blas, Panamá...nearest anything is Panama City.
belizesailor is offline   Reply With Quote
Old 23-06-2018, 20:11   #14
Registered User

Join Date: Dec 2010
Location: W Carib
Boat: Wildcat 35, Hobie 33
Posts: 9,346
Re: Stuck Filter Housing

Quote:
Originally Posted by zboss View Post
Those strap wrenches suck. I bought one of these and they work much much better... https://m.sears.com/search=oil+filter+wrench
Quote:
Originally Posted by thinwater View Post
Exactly. I think it's the same size that fit the filters on my Ford. Get the right tool for the job.



And yes, silicon grease on the threads.

Ive got a couple of diff size strap wrenches. They work on my oil filters, but slip on water filter housings.

Have one of the mechanical ones you posted too, but ashore.

Normally, the filter wrench works just fine, but boat was laid up for much longer than normal this time.
belizesailor is offline   Reply With Quote
Old 23-06-2018, 20:59   #15
Registered User

Join Date: Feb 2013
Location: Lago de Izabal, Guatemala
Boat: Seafarer36c
Posts: 4,610
Re: Stuck Filter Housing

Quote:
Originally Posted by belizesailor View Post
San Blas, Panamá...nearest anything is Panama City.
San Blas, MX probably has an oil filter wrench. I know that in one place near there, you can swim right across a fence from alligators. I watched my wife do it.
